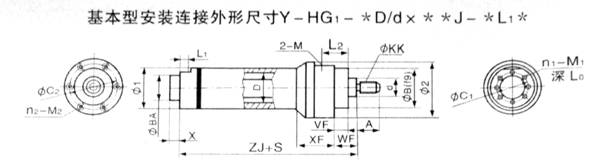

缸径D 速比Φ 杆径d ΦKK A M ΦB ΦBA ΦC1 ΦC2 Φ1 Φ2 VF WF XF ZJ X L1 L2 L0 n1-M1 n2-M2 40 1.46 22 M16X1.5 22 M18X1.5 48 20 42 66 54 80 19 32 69 190 8 26 44 12 8-M6 6-M8 2 28 M20X1.5 28 50 1.46 28 M20X1.5 28 M18X1.5 55 30 50 75 63.5 90 24 38 86 205 8 18 61 12 8-M6 6-M8 2 35 M27X2 36 63 1.46 35 M27X2 36 M27X2 70 38 60 90 76 108 29 45 79 224 10 25 52 12 8-M8 6-M10 2 45 M33X2 45 80 1.46 45 M33X2 45 M27X2 86 55 75 112 95 134 36 54 78 250 10 36 58 13 8-M10 6-M12 2 55 M42X2 56 90 1.46 50 M42X2 56 M27X2 100 55 80 132 108 158 36 55 89 270 10 43 63 17 8-M12 6-M16 2 63 M48X2 63 100 1.46 55 M42X2 56 M33X2 118 68 95 150 121 175 37 57 95 300 10 47 69 18 8-M12 6-M16 2 70 M48X2 63 110 1.46 63 M48X2 63 M33X2 132 60 95 165 133 195 37 57 101 310 10 50 73 22 8-M16 6-M16 2 80 M48X2 63 125 1.46 70 M48X2 63 M33X2 150 80 115 184 152 212 37 60 113 325 10 50 85 22 8-M16 6-M16 2 90 M64X2 85 140 1.46 80 M48X2 63 M42X2 165 95 132 200 168 230 37 62 109 335 10 53 74 22 8-M16 6-M16 2 100 M80X3 95 150 1.46 80 M64X2 85 M42X2 175 105 140 215 180 245 41 64 117 350 10 54 85 22 8-M16 6-M16 2 105 M80X3 95 160 1.46 90 M64X3 85 M42X2 190 110 150 230 194 265 41 66 133 370 10 59 91 26 8-M20 6-M20 2 110 M80X3 95 180 1.46 100 M80X3 95 M48X2 200 110 160 250 219 280 41 70 147 410 15 65 98 27 8-M20 6-M20 2 125 M80X3 95 200 1.46 110 M80X3 95 M48X2 215 120 170 280 245 310 45 75 169 450 15 65 115 27 8-M20 6-M20 2 140 M100X3 112 220 1.46 125 M100X3 112 M48X2 240 140 200 310 273 340 45 80 178 490 20 75 123 36 8-M24 6-M20 2 160 M100X3 112 250 1.46 140 M100X3 112 Φ40 280 160 220 340 299 380 64 96 208 550 25 80 145 36 8-M24 6-M24 2 180 M125X4 125 280 1.46 160 M125X4 125 Φ40 300 180 240 370 325 410 64 100 236 600 30 80 162 36 8-M24 6-M24 2 200 M125X4 125 320 1.46 180 M125X4 125 Φ40 360 200 310 430 377 470 71 108 270 660 35 80 190 36 12-M24 6-M24 注：详细技术参数请咨询厂家
